Fishman Upright Bass Pro-EQ Platinum Pre-Amp Equalizer


PRODUCT DESCRIPTION: Designed in response to requests from Upright Double Bass players, this versatile preamp/EQ/DI is at home everywhere from local open mic nights to major festival stages. The Pro-EQ Platinum is Fishman's premium preamp/DI, dialed-in just for the acoustic player. The Pro-EQ is packed with a rack's worth of serious acoustic processing, all in a stompbox-sized package.

The Pro-EQ Platinum's four-band equalizer is modeled after Fishman's gig-proven Prefix Plus onboard preamp, with sliders that are assigned to just the right frequencies for acoustic equalization. A semi-parametric midrange control employs a "constant Q" filter for more precise and consistent tone adjustments. Also borrowed from the Prefix design are feedback fighting phase and notch controls.

The Pro-EQ Platinum features Fishman's exclusive "Voltage Doubler" technology, which improves both the dynamics and clarity of any pickup. Another innovation utilized in the Platinum is the Smooth acoustic compression circuit. This control removes the harsh percussive edge from your amplified sound when you play hard.

Sound engineers will appreciate the Pro-EQ Platinum's pro-audio features which include a balanced XLR-out, and XLR pre/post EQ switch, plus optional 48-Volt phantom power operation. This means no more batteries or wall warts if your mixer has phantom power. Unique to the Pro-EQ is a hum-killing ground lift switch that (unlike other acoustic preamps) works even when phantom power is applied to the amp.

PRODUCT FEATURES: POWER OPTIONS -Nine Volt Battery (included) -48 Volt Phantom Power option -Nine Volt AC Adapter Input (not included)

CONTROLS -Input Gain -Volume -Notch & Phase -Bass/Mid EQ/Treble/Brilliance -XLR Pre/Post Switch -XLR Ground Lift

OUTPUTS -XLR Balanced Out -1/4" Unbalanced Out -Tuner/Send

Five-Band Graphic EQ-dialed in just for bass

• Bass = ±12dB at 30Hz
• Low Mid = ±6dB at 200hz
• Mid = ±6dB at 1.25kHz
• Hi Mid = ±9dB at 5kHz
• Treble = ±12dB at 10kHz

Quick Start printed on back of unit for easy reference:

10 megohm input impedance, great for acoustic instrument transducers

Soft-knee, pump-free, Photo-optic compression; maximum gain reduction of -14dB

Depth control for big bottom without boom or flab; 12dB/octave low cut filter, 15 to 125 Hz

Phase switch to aid in fighting acoustic instrument feedback

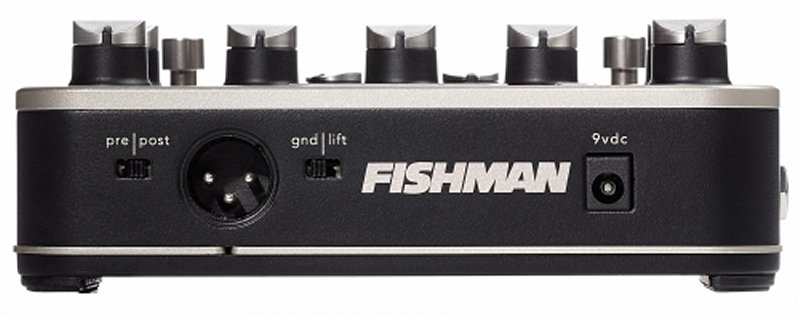

XLR DI balanced out, with ground lift to avoid hum, and pre/post switch.

Tuner out 1/4" jack

combination Clip Light and Low Battery Light indicator

3-way power, from 9V battery, 48V phantom or AC adapter (not included); battery life 80+ hours continuous

Weight: 1 lb., 13 oz. with battery

Heavy duty steel and plastic enclosure with non-slip rubber contact areas on the bottom of the case

Comprehensive manual includes sample EQ settings and feedback fighting suggestions

suited for acoustic, upright, and electric basses

Click here for the complete product manual with more specifications in PDF format from the Fishman site.
